Commercial ADA Concrete Sidewalks, Entrance Ramp & Accessible Parking Striping in Marietta, GA

Our team at Sergio Ruiz & Son, Inc. recently completed a top-notch concrete adding sideway, entrance, ADA space and ramp customer's commercial in Marietta, GA

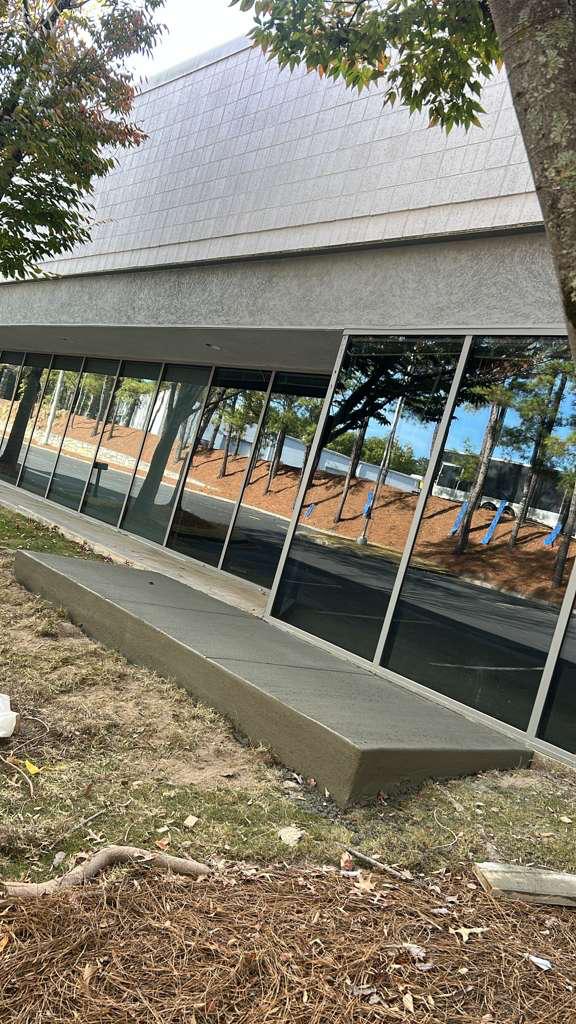

2 Concrete sidewalk and prom finish. 1st sideway is in front of the building with the ADA Ramp and 2nd sideway is on the side of the building where the employees enter.

(2) additional ADA striping parking spot. Curb and gutter cut and match existing. ADA Ramp including yellow ADA Stamp. Pour concrete inside and tie it with rebar every 12 inches.

Stripe parking 1-parking space per approved construction drawing

Provide a smooth, stable, and slip-resistant pathway that connects driveways, parking areas, entrances, ramps, and other accessible areas.

Base prep: Add and compact gravel or crushed stone for stability.

Formwork: Install concrete forms that define the sidewalk’s path and slope.

Concrete pour and finish: Usually 4" thick, 3000–4000 PSI concrete with broom finish for traction.

Control joints: Placed every 4–5 feet to prevent cracking.

ADA requirements:

Firm, stable, slip-resistant surface (no gravel or loose pavers unless ADA-rated).

♿ ADA Space (Accessible Parking & Maneuver Area)

Purpose:

Create an accessible route and space for individuals with mobility challenges — including parking, turning, and entry zones.

Typical scope:

Accessible parking space:

8 ft wide minimum (van accessible: 11 ft wide with a 5 ft access aisle).

Level surface (≤ 2% slope in any direction).

Proper signage (van-accessible, reserved marking).

Durable striping and signage per ADAAG and Georgia Building Code.

Access aisle / landing area:

Connects parking to ramp or sidewalk.

Minimum 5 ft width, same slope limits as above.

Accessible route:

Continuous, unobstructed path to building entrance (may include ramp or sidewalk).

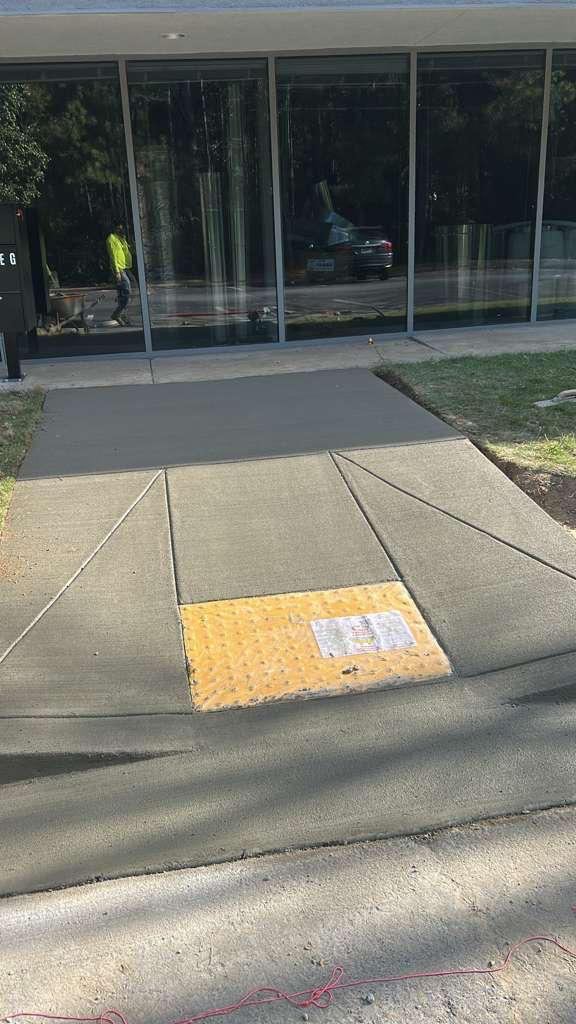

🛗 ADA Ramp

Purpose:

Provide a safe, sloped pathway between different elevations (like from driveway to door or parking to sidewalk).

Design and slope:

Max slope: 1:12 (1 inch rise per 12 inches run).

Landings: Level area at top and bottom, min. 60" long.

Width:

Surface:

Firm, stable, slip-resistant (textured broom finish or composite decking).

Edge protection:

2" minimum curb prevent wheel roll-off.

Service provided: Concrete Installation

Location: Marietta, GA
